| Overview | |
|---|---|
| Brand | Cisco |

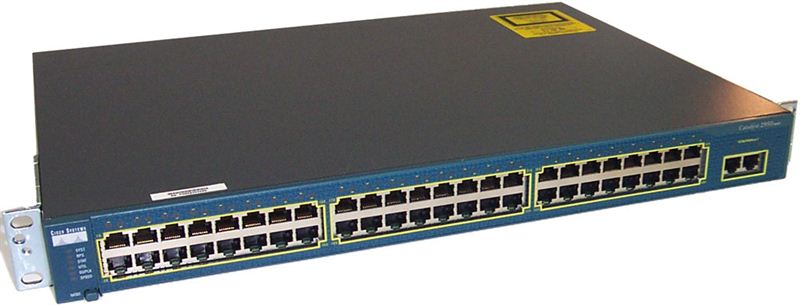

| Model | WS-C2950T-48-SI |
| Product | Switch |
| General Features | |
| Interface | Fast Ethernet |
| Software Included | Standard Image (SI) Software |
| RAM | 16 MB |
| Flash Memory | 8 MB |
| MTBF | 268,876 sec |
| Camera Installed Size | 8 MB |
| Networking | |
| 10/100 ports | 48 |
| 10/100/1000 ports | 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 10Base-T |
| MAC Address Table Size | 8K entries |
Compliant Standards |
IEEE 802.1D |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ad (LACP) | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| Remote Management Protocol | RMON, SNMP, Telnet |
Status Indicators |
Bandwidth utilization % |
| Collision status | |
| Link OK | |
| Link activity | |
| Port duplex mode | |
| Port status | |
| Port transmission speed | |
| Power | |
| Switching Protocol | Ethernet |
| Communication Mode | Full-duplex, Half-duplex |
Features |
VLAN Support |
| Full duplex capability | |
| Manageable | |
| Network monitoring | |
| Stackable, uplink | |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
| Max Altitude Operating | 9840 ft |
| Body | |
| Dimension (W x D x H) | 17.5 x 13 x 1.7 Inch |
| Weight | 4.80 Kg |
| Warranty | |
| Manufacturing Warranty | 1 Year on Software & 6 Months on Hardware. |
US$ 269.15
