| Overview | |
|---|---|
| Brand | Mikrotik |

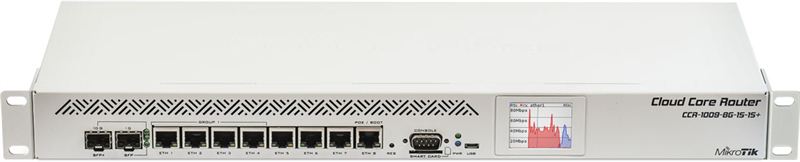

| Model | CCR1009-8G-1S-1S+ |
| Platform | |
| OS | RouterOS |
| SFP DDMI | Yes |
| CPU | TLR4-00980CG-10CE |
| CPU Nominal Frequency | 1.2 GHz |
| CPU Core Count | 9 |
| Architecture | TILE |
| RAM | 2 GB |
| Ports/Slots | |
| 10/100 Ethernet ports | No |
| 10/100/1000 Ethernet ports | 8 |
| MiniPCI slots | No |
| MiniPCI-e slots | No |
| Number of USB ports | 1 |
| USB port Type | microUSB type AB |
| SFP ports | 1 |
| SFP+ ports | 1 |
| Serial Port | RS232 + Header |
| Power | |
| Supported input voltage | 14 V - 57 V |
| Max. Power Consumption | 35 Watt |
| Power Jack | 2 |
| Othet Features | |
| PoE Out | No |
| PoE In | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Current Monitor | No |
| License level | 6 |
| Operating Temerature Range | -20 Degree Celsius to +60 Degree Celsius |
| Dimensions | |
| Dimensions | 444x175x47mm |
| Warranty | |
| Manufacturing Warranty | 1 Year on Software & 6 Months on Hardware. |
US$ 751.40
