| Overview | |
|---|---|
| Brand | Mikrotik |

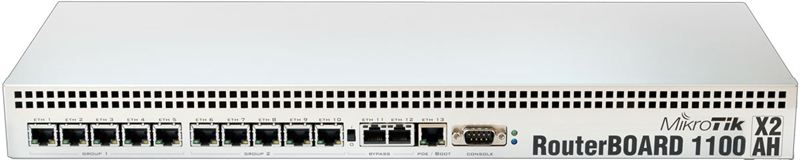

| Model | RB1100AHx2 |
| Product | Ethernet Router |
| Platform | |
| OS | RouterOS |
| SFP DDMI | Yes |
| CPU | P202ASSE2KFB |
| CPU Nominal Frequency | 1 GHz |
| CPU Core Count | 2 |
| Architecture | PPC |
| RAM | 2 GB |
| Ports/Slots | |
| 10/100 Ethernet ports | No |
| 10/100/1000 Ethernet ports | 13 |
| MiniPCI slots | No |
| MiniPCI-e slots | No |
| Number of USB ports | No |
| Memory Card | 1 (microSD) |
| SFP ports | No |
| SFP+ ports | No |
| 802.3af support | No |
| Serial Port | RS232 |
| Power | |
| Supported input voltage | 10 V - 28 V |
| Power Jack | 1 |
| Othet Features | |
| PoE Out | No |
| PoE In | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| License level | 6 |
| Antenna gain DBI | No |
| Current Monitor | No |
| Number of chains | No |
| Operating Temerature Range | -30 Degree Celsius to +60 Degree Celsius |
| Dimensions & Weight | |
| Size For 1U Case | 44 x 176 x 442 mm |
| Weight | 1.2 Kg |
| Warranty | |
| Manufacturing Warranty | 1 Year on Software & 6 Months on Hardware. |
US$ 542.22
