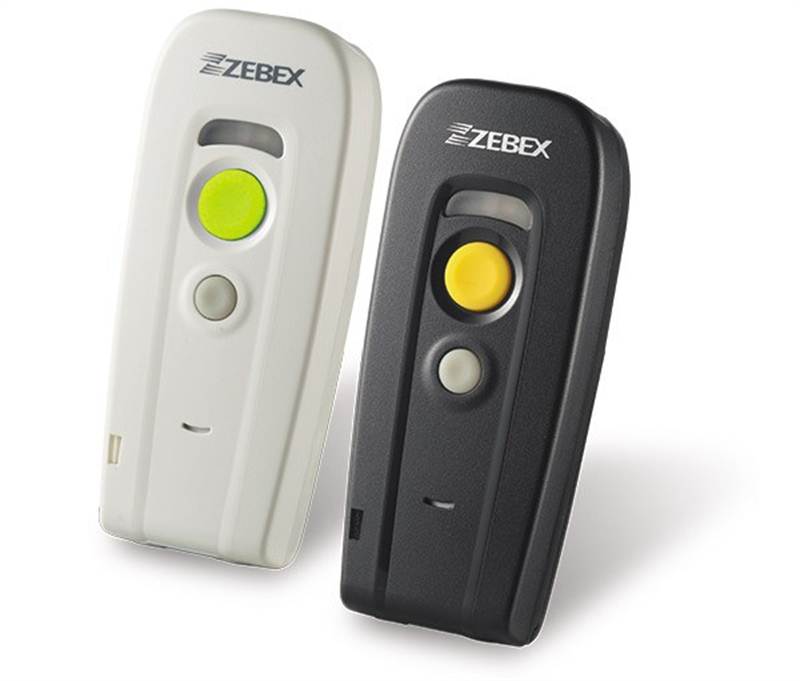

Handy Wireless CCD Scanner
Designed for optimal reading performance, the compact Z-3250 offers wide scanning range and wireless communication technology for easy handling of any applications.
Z-3250 includes a 32-bit CPU and excellent scan engine in a small yet powerful unit delivering intuitive and rapid scanning regardless of environment..
• Compact, light weight and portable
• Compatible with iOS, Android, and PC Windows devices
• 32-bit microprocessor
| Specifiation of Z-3250 |
|---|
| Name | Zebex Barcode Scanner |
| Brand | Zebex |
| Model | Z-3250 |
| Function | ● 1D Barcode Scan ● 330 scans per sec ● Three-color LED (Green, Red & Blue) |
| Light Source | 617 nm visible red LED |
| Optical System | Linear CCD array |
| Microprocessor | 32-bit |
| Depth of Field | 4 mil: 50 – 90 mm 5 mil: 50 – 120 mm 10 mil: 30 – 240 mm 13 mil: 25 – 250 mm 20 mil: 40 – 330 mm |
| Scan Rate | 330 scans per second |
| Minimum Bar Width | 4 mil |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicator | Three-color LED (green, red & blue) |
| Beeper Operation | Beeper tone & volume |
| System Interface | USB HID, Virtual COM, OPOS |
| Dimensions | 97.0 mm × 40.0 mm × 23.0 mm |
| Cable | Wireless |
| Input Voltage | 5 VDC ±10% |
| Standby Current | Battery - 3.7V, 850 mAH, Li-ion rechargeable battery Over 80 hours at 6 scans per minute (depending on condition) |
| Operating Current | Charging: 440 mA; non-charging: 150 mA |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | 5% – 95% RH (non-condensing) |
| Light Level | 0 – 100,000 Lux (fluorescence) |
| Drop Durability | Designed to withstand 1.2M drops |
| 1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite |
| Made in | China |
| Country of Origin | Taiwan |
| Warranty | |
|---|---|
| Manufacturing Warrranty | 1 Year |
US$ 15.98
