| Overview | |
|---|---|
| Brand | ASUS |

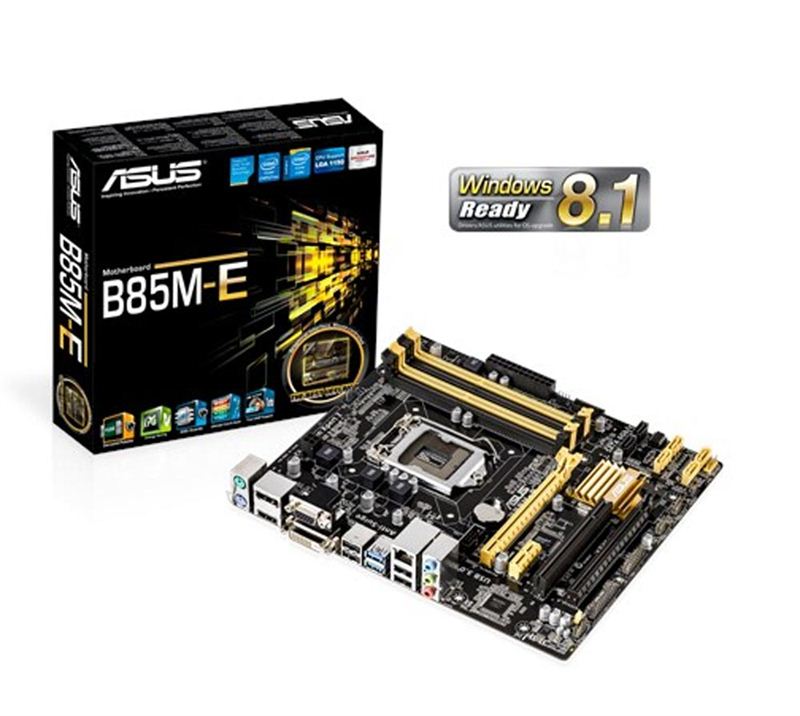

| Model | B85M-E |
| Product Type | Motherboard |
| General Features | |
| CPU | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® B85 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz Maximum shared memory of 1024 MB Supports up to 3 displays simultaneously |
| Multi-GPU Support | Supports AMD Quad-GPU CrossFireX™ Technology |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® B85 chipset : 2 x SATA 3Gb/s port(s), dark brown 4 x SATA 6Gb/s port(s), yellow |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887-VD 8-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| USB Ports | Intel® B85 chipset : 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) Intel® B85 chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
| Operating System | |
| Operating System Support | Windows® 8.1 Windows® 8 Windows® 7 |
| I/O Ports | |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x LPT1 header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) |
| BIOS | 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
| Form Factor | mATX Form Factor 9.6 x 8.4 inch |
| Other Features | |
| ASUS EPU | EPU |
| ASUS Exclusive Features | AI Suite 3 Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl USB 3.0 Boost |
| ASUS Quiet Thermal Solution | ASUS Fan Xpert 2 |
| ASUS EZ DIY | ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 |
| ASUS Q-Design | ASUS Q-Slot ASUS Q-DIMM 100% All High-quality Conductive Polymer Capacitors |
| Warranty | |
| Manufacturing Warranty | 3 Year |
US$ 114.50
