| Overview | |
|---|---|
| Brand | ASUS |

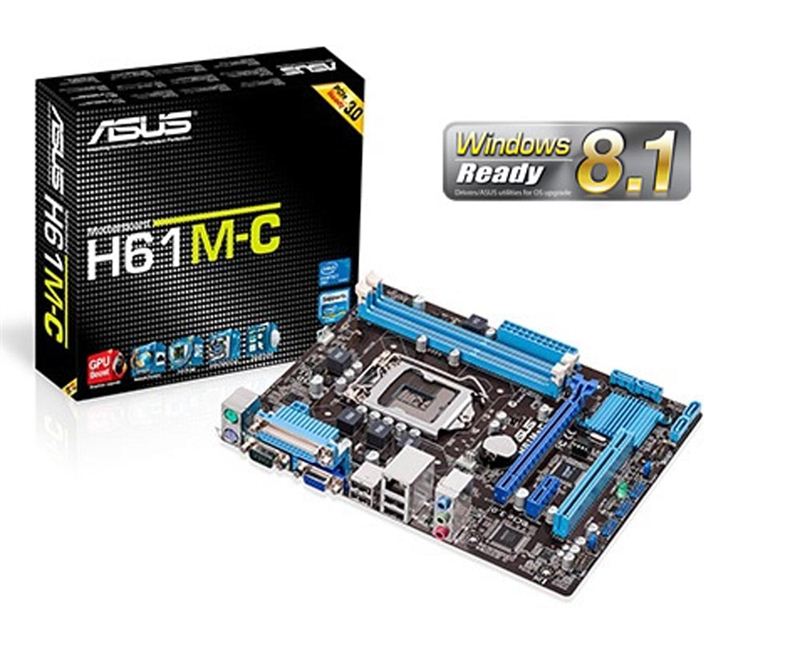

| Model | H61M-C |
| Product Type | Motherboard |
| General Features | |
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H61 |
| Memory | 2 x DIMM, Max. 16GB, DDR3Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1696 MB |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 1 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), black |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB Ports | Built-in Controller : 10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board) |
| Operating System | |
| Operating System Support | Windows® 8 Windows® 7 |
| I/O Ports | |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
| Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready |
| Manageability | WOL, PXE, PME Wake Up |
| Support Disc | Drivers ASUS Utilities ASUS Update Anti-Virus Software (OEM Version) |
| Form Factor | uATX Form Factor 9 x 7 inch |
| Other Features | |
| ASUS Exclusive Features | AI Suite II Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl |
| ASUS Quiet Thermal Solution | ASUS Fan Xpert |
| ASUS EZ DIY | ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |
| Warranty | |
| Manufacturing Warranty | 3 Year |
US$ 51.68
