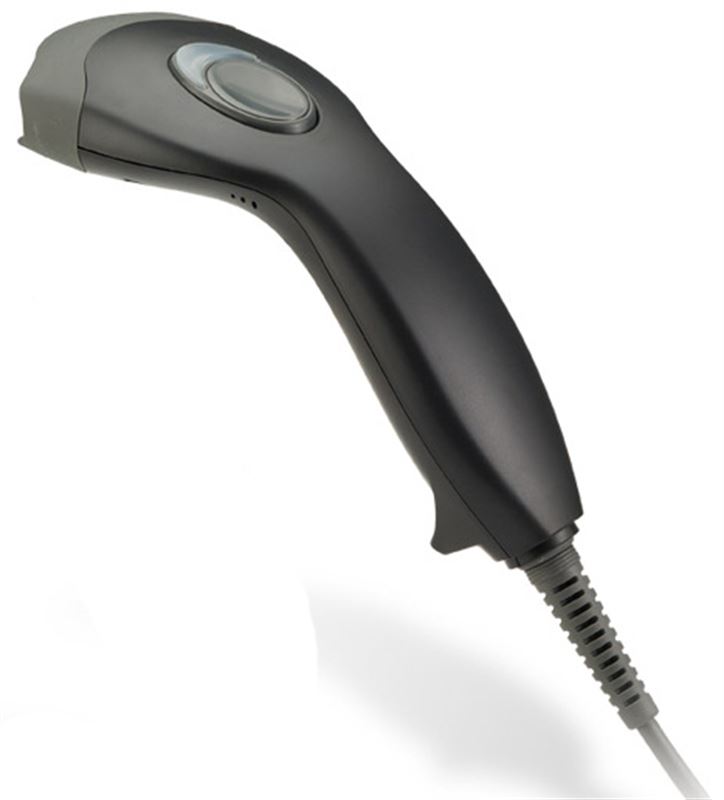

Advanced Middle-Range Handheld CCD Scanner
Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability. At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar. It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.
| Specifiation of Z-3100 |
|---|
| Operational | |
|---|---|
| Light Source | 617 nm visible red LED |
| Optical System | Linear CCD array |
| Microprocessor | 32 bit |
| Depth of Field | 4 mil: 0 – 60 mm 5 mil: 0 – 100 mm 7.5 mil: 0 – 140 mm 10 mil: 0 – 180 mm 13 mil: 0 – 300 mm 20 mil: 0 – 350 mm |
| Scan Angle | 42° |
| Scan Rate | 330 scans per second |
| Print Contrast | Min. 30% @ UPC/EAN 100% |
| Indicator | Blue Color LED |
| Beeper Operation | Programmable tone & beep time |
| System Interface | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Physical | |
| Dimension | 152.3 x 64.4 x 104.9 mm (device only) |
| Weight | 120 g (cable excluded) |
| Cable | Standard 2M straight |
| Power | |
| Input Voltage | 5 VDC ±5% |
| Operating Current | 110 mA typical |
| Regulator | |
| Laser Class | IEC 62471 Exempt |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Environmental | |
| Operating Temperature | 0°C – 50°C (32°F – 104°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | 5% – 95% RH (non-condensing) |
| Light Level | 0-100, 000 Lux |
| Drop Durability | Designed to withstand 1.5M drops |
| Decoding Capability | |
| 1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen |
| Warranty | |
| Manufacturing Warrranty | 1 Year |
US$ 47.95
