| General | |
|---|---|
| Type | Unmanaged |
| Installation | Plug and Play |

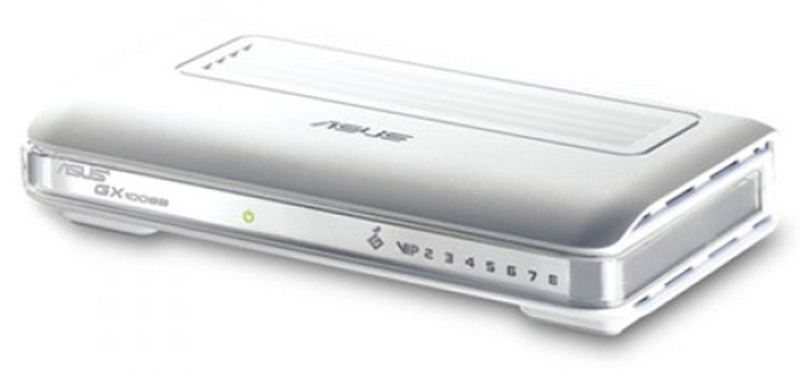

| Model | GX1008B Desktop Unmanaged Switch |
| Part | GX1008B |
| Brand | ASUS |
| Operating Conditions | |
| Operational Humidity | 10 % to 90 % Non-condensing |
| Operational Temperature | 0DegC - 40DegC |
| Storage Humidity | 5 % to 95 % Non-condensing |
| Power | |
| Power Requirement | 9 V DC, 0.5 A |
| System Requirements | |
| Hardware Memory | Buffer Memory: 448 Kbits |
| Network Ports | |
| Number of Ethernet ports | 8 |
| Speed | 10/100 Mbps |
| Supported Protocols | |
| Supported Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3p |
| Network Features | |
| Bandwidth | 1.6 Gbps |
| Indicators | |
| LEDs | Yes |
| Additional Features | |
| Additional Features | High Performance, Fan-less Design, Protects Against Collisions and Lost Packets, Auto MDI/MDIX, Transmission Method: Store-and-forward, 2K MAC Address Table, EMC: FCC Part 15 Class B, CE Mark, C-Tick, PCT |
| Dimensions | |
| Height | 27 mm |
| Width | 150 mm |
| Depth | 84 mm |
| Weight | 205 g |
| Warranty | |
| Manufacturing Warranty | 1 Year |
US$ 13.64
